Tri Axles Truck Dump Trailer

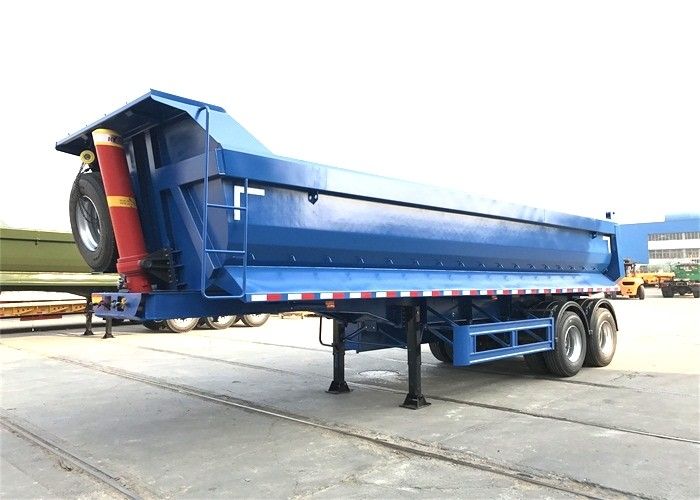

Large Image : Tri Axles Truck Dump Trailer

Product Details:

Place of Origin:	China
Brand Name:	SINOTRUK
Certification:	ISO/3C/BV/IFA/SGS
Model Number:	DX945865789VP

Payment & Shipping Terms:

Minimum Order Quantity:	1unit
Price:	US$10000-15000US$/UNIT
Packaging Details:	According customer request
Delivery Time:	10-15 working days after deposit or LC
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	2000 units per month

Contact Now

Tri Axles Truck Dump Trailer

Description

Use:	Truck Trailer	Type:	Dump Trailer
Material:	Steel	Certification:	CE/ADR/DOT
Size:	11500mm25002850mm	Max Payload:	40-100 Tons
Axle Brand:	Fuwa/BPW	Axle Loading:	13,16,20,22 Tons
Suspension:	Mechanical/Air Suspension	Tire:	11.00r20 Or 12r22.5
King Pin:	2"(50mm)or3.5"(90mm) JOST	Landing Gear:	JOST Brand Two-speed
Leaf Spring:	90(W)mm13(Thickness)mm10(Layer)	Vehicle Paingting:	Electrophoresis Paint
Dump Box:	Bottom 4 Mm Side 3 Mm	Lifting Cylinder:	HYVA
Highlight:	Tri Axles Truck Dump Trailer , 2 Axles Truck Dump Trailer , Tri Axles Tipper Dump Trailer

SINOTRUK TRUCK DUMP TRAILER

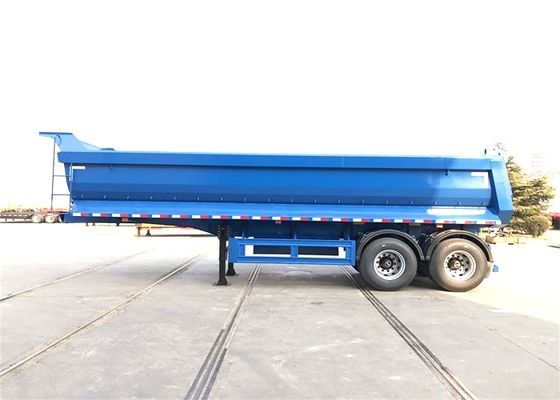

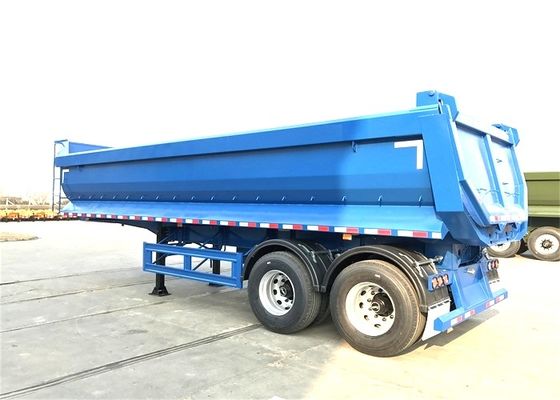

Tri Axles Truck Dump Trailer 0 Tri Axles Truck Dump Trailer 1 Tri Axles Truck Dump Trailer 2 Tri Axles Truck Dump Trailer 3 Tri Axles Truck Dump Trailer 4 Tri Axles Truck Dump Trailer 5

Tri Axles Truck Dump Trailer 6

Tri Axles Truck Dump Trailer 7

Specification of Dump Truck Trailer
Overall Size	13000mmx2500mmx3600mm
Capacity	50 tons or optional upon choice
Chassis	Material: Q345B
	Top flange 14mm, middle flange 10mm, bottom flange 16mm
	Main beam height: 500mm
Axle	3*13T/16T capacity, FUWA / BPW Brand
Suspension	Spring mechanical suspension or air suspension
Leaf spring	Leaf spring or air bag
Floor & Side wall	4mm floor, 3mm side wall
Tire	11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5 Tire optional
Wheel rim	8.5-20, 9.0-20, 8.25-22.5, 9.0-22.5 steel wheel rim optional upon choice
Kingpin	2''/3.5'' bolt-in king pin
Landing gear	JOST brand two-speed, manual operating, heavy duty landing gear
Cylinder	Chinese famous brand.
Braking system	Dual line brake system; T30/30 spring brake chamber; 40L air tanks
Painting	Complete chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coat of final paint
Accessories	One standard tool box, one spare carrier

We have perennial cooperation suppliers of raw materials with really good quality and have certain amount reserve, saving cost and production cycle, and make the product standardization. Constantly updated product design, technology is guaranteed.

Tri Axles Truck Dump Trailer 13

Tri Axles Truck Dump Trailer 14

We have advanced Instrument and equipment, professional engineers, assemblyline production of standardized products, the workers have many years of work experience, they have efficient work and products have meticulous workmanship.

Tri Axles Truck Dump Trailer 15

Tri Axles Truck Dump Trailer 16

Tri Axles Truck Dump Trailer 18 Tri Axles Truck Dump Trailer 20
