Product Details:
|
Manufacturer: | SINOTRUK (CNHTC) | Series:: | HOWO |
---|---|---|---|
Product Name:: | Fuel Tank, Oil Tank, Oil Transport Truck | Model:: | ZZ1257N4641W |
Drive Type:: | 6X4, LHD | Engine:: | WD615.69, 336HP, Euro II |
Tank Vol.: | 18m3 | Loading Capacity:: | 20tons |
Cabin:: | HW76,1 Beth | Transmission:: | HW19710 |
Highlight: | 6x4 Oil Tank Truck,HOWO Oil Tank Truck,ZZ1257N4641W |
SINOTRUK (CNHTC) HOWO heavy duty trucks--the most advanced and most superior new generation of heavy duty trucks in China, with proprietary brand and intellectual property right, was developed by SINOTRUK (CNHTC) by applying the world advanced heavy duty truck key technology aiming at the market of the world.
HOWO heavy duty truck adopts the advanced key assemblies which are reasonably connected by advanced technology. The arrangement of the complete vehicle is perfect; the main assemblies are harmonious, unified and reliable, which makes the complete vehicle have better performance on power, economical efficiency, reliability and environmental protection.
HOWO heavy duty truck is with luxury and great appearance; it is a combination of fortitude and streamline, sturdiness and elegance. It aims at world heavy duty truck level on the ergonomic design like comfortability, safety and accessibility.
The launch of HOWO heavy duty truck embodied the enterprise operation philosophy of SINOTRUK (CNHTC) of pursuing the optimized customer value constantly. It will make the customer be proud of his correct option by its strong working ability, pleasurable interior and exterior trimmings, and better safety, comfortability, easy to operate, low fuel consumption and easy to maintain.

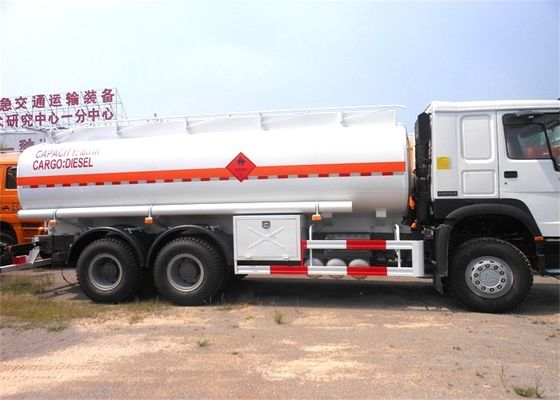

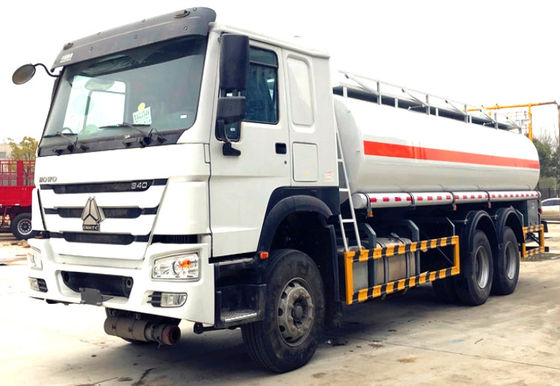

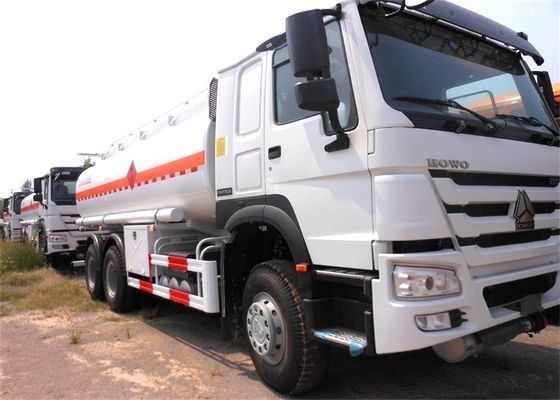

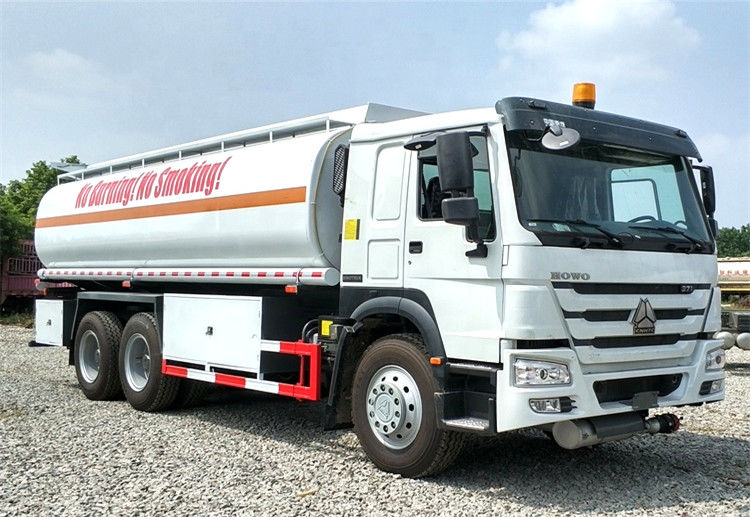

Oil tank trucks are mainly used for the transportation and storage of petroleum derivatives (gasoline, diesel, crude oil, lubricating oil, coal tar and other oil products).
Refueling trucks are mainly used for the distribution and retail of oil products from gas stations to users. They are suitable for the retail and refueling of construction vehicles, construction sites, mines and other construction vehicles. They are also commonly used by companies with more vehicles such as bus companies and logistics companies. Refueling trucks is also often used for oil distribution in fuel-consuming units such as fuel boilers.
Fuel tank truck specification | |
Truck brand | SINO TRUK |
Driving type | Left hand drive |
Over demesions(L*W*H) | 10350*2496*3633(mm) |
Tank demesions (L*W*H) | 5050*2496*1620 (mm) |
Tank capacity(L) | 2000 |
Approaching angle/Departure angle(°) | 16/12(°) |
F/R track base(mm) | 1205/3485 (mm) |
Curb weight(kg) | 11360(Kg) |
Max speed(km/h | 90 |
Tank specification | |
Tank volume | 20000L |
Tank Material | stainless steel |
Engine(Steyr technology, made in China) | |
Model | WD615,69water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection |
Fuel type | Diesel |
Horse Power, max(kw/rpm) | 336HP |
Emission | EURO II |
Fuel tanker capacity (L) | 300 |
Transmission | |
Model | HW19710,10 forwards and 2 reverse |
Brake system | |
Service brake | Dual circuit compressed air brake |
Parking brake | spring energy, compressed air operating on rear wheels |
Auxiliary brake | Engine exhaust brake |
Steering system | |
Model | ZF8118 |
Other specification | |
Front axle | HF9 |
Rear axle | HC16 |
Color | Optional |
Tire | 11.00-20 / 12.00-20/ 295/80R22.5 |
Tire quantity | 11 |
Electrical system | |
Battery | 2X12V/165Ah |
Alternator | 28V-1500kw |
Starter | 7.5Kw/24V |
Cab | |
HOWO76 cab with one sleeper and air conditioner |
1, Due to the tank between ontology and girders car cushion rubber mat, within the tank after reloading the u-shaped bolt looseness happens due to deformation of the rubber, so after commissioning overloading the U bolt to tighten,
especially when using must be tightened.
2, In order to ensure the oil tank cleaning, tank and oil system should be cleaned regularly, inside and outside the joint often should grease on both ends of the oil hose, easily when disassembling, tubing, after using to mount on both ends of the connector.

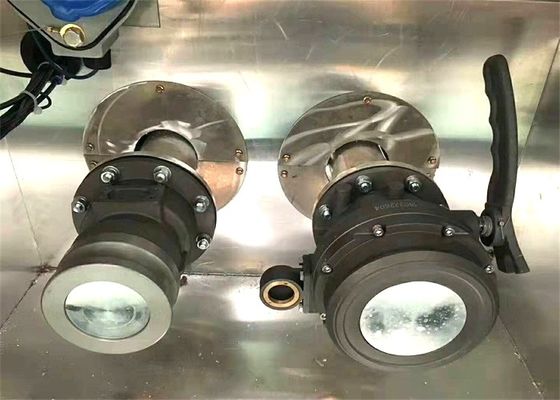

3, Ball valve through the medium should not be too dirty, in order to protect the instructions for inspection and maintenance. sealing ring, improve the service life of ball valve, the valve should not be under a state of half off work for a long time, otherwise easy to make bad sealing ring, in driving.

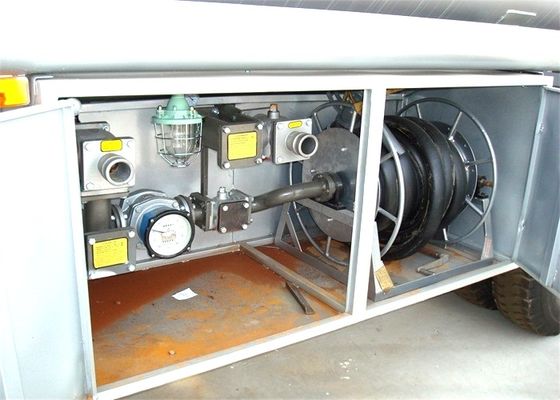

4, Into the pump tee filter should be often unpick and wash, in of oil residue jams mesh impact traffic.
5, Should maintain the cleanness of the respiration valve, make the respiration valve is in working status, spring may not arbitrarily change in the valve, lest affect the effect of breathing valve deflated. When breathing valve closed, cause the deformation.
6, In order to prevent fire accident to block, on the exhaust pipe, silencer is damaged, pipeline leak, conducting electrostatic clip, are not allowed to damage or fracture and tapping oil vehicles parts, metal items, lest produce Mars block must be ready to.
7, If tank sedimentation tank under freezing and may not be roasted in the fire, can use hot steam melt or pulls into thaw in the greenhouse.
8, s of unsymmetry must make before driving force.
9, Oil vehicles driving, the rear of the electrostatic belt must take to replace damaged in a timely manner.
10, A tanker truck operation before, should check whether the oil pipeline system, ground wire is disconnected, the exhaust pipe is damaged, found that the problem should be resolved first homework again.
11, Hit oiling car parts are not allowed to use metal, lest produce Mars, homework should be careful not to produce Mars, oil should be in accordance with the relevant provisions.
12,When you enter a loading oil tank to check, the outside of the tank must be watched .Must be in accordance with the relevantindustry operating procedures, make sure the personal property safety.
13, In winter, if there is water in the self-priming pump must put all the water, to prevent frostbite to break the pump body.
1. Scientific and reasonable design to reduce the fluctuation of the liquid in the tank when the vehicle accelerates and decelerates.
2. The European standard system guarantees the safety of the vehicle.
By Roro or Bulk or Flat Rack Container according to your specific requests.
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:I want to be your agent in my country , is that ok?
A:It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.
Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?
A: We can make the tyres as your requirement to suit your country's need.
